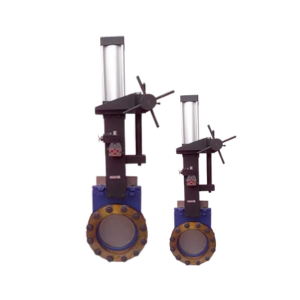

Carbon Steel Knife Gate Valves from Controtek Global are strong and effective, made for demanding industrial applications. These valves are made of sturdy carbon steel and offer exceptional strength, dependability, and wear resistance, which makes them appropriate for handling corrosive media, powders, viscous fluids, and abrasive slurries. Smooth cutting through solid or thick fluids is ensured by the sharp-edged gate, and a tight shut-off with little leakage is guaranteed by the precision design. Carbon steel construction is perfect for heavy-duty applications in power plants, mining, steel manufacturing, chemical industries, and wastewater treatment because it has a higher pressure and temperature handling capacity than cast iron or ductile iron valves.
Carbon Steel Knife Gate Valve - Technical Specification | |
---|---|
Product Type | Knife Gate Valve |
Material | Carbon Steel |
Design Standard | ANSI B16.34, MSS-SP-81 |
End Connections | Flanged (ANSI B16.5), Butt Weld, or Lug |
Size Range | 2” to 36” (50mm to 900mm) |
Pressure Rating | ANSI Class 150, 300, 600, 900, or 1500 |
Temperature Range | -29°C to 425°C (-20°F to 800°F) |
Body | Carbon Steel, ASTM A216 WCB or equivalent |
Gate | Carbon Steel, ASTM A216 WCB or equivalent |
Seat Material | EPDM, NBR, PTFE, or Metal (depending on service requirements) |
Stem | Stainless Steel (AISI 304 or 316) |
Stem Packing | Graphite or PTFE |
Seat Type | Elastomeric (for tight shutoff) or Metal-to-Metal (for high pressure or abrasive applications) |
Valve Type | Manual, Pneumatic, or Electric Actuated |
Flow Direction | Bi-directional or Uni-directional (depending on design) |
Operation | Manual Lever, Gear Operator, Pneumatic, Electric |
Seal Type | Resilient or Metal-to-Metal |
Testing Standard | API 598, EN12266-1 (Seat & Shell) |
Face-to-Face Dimensions | According to ANSI B16.10 or customer requirements |
Weight | Varies based on size, pressure rating, and configuration |
Coating | Epoxy, Powder Coat, or Painted for corrosion resistance |
Applications | Mining, Water Treatment, Pulp & Paper, Slurry, and General Industrial Services |
