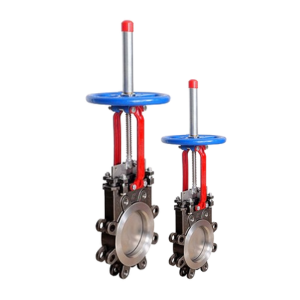

The Motorized Knife Gate Valves from Controtek Global combine the accuracy and convenience of electric motor-driven actuation with the reliable performance of conventional knife gate valves. These valves, which are made for industries that need automated flow control in challenging conditions, provide dependable performance even when working with thick slurries, abrasive fluids, and media that is heavy in solids. By enabling smooth remote operation and precise control over valve opening and closing without the need for manual intervention, the motorized actuator improves operational efficiency and safety. The motorized knife gate valves from Controtek Global are made of premium materials like carbon steel or stainless steel and are designed to endure high pressures and temperatures, offering corrosion resistance and long-lasting durability.
Motorised Knife Gate Valve - Technical Specification | |
---|---|
Manufacturer | Controtek Global |
Valve Type | Motorised Knife Gate Valve |
Actuation | Electric Motor (On/Off or Modulating Control) |
Body Material | Stainless Steel (SS304, SS316), Carbon Steel (ASTM A216 WCB), or Duplex Stainless Steel |
Gate Material | Stainless Steel or Carbon Steel |
Seat Material | PTFE, EPDM, NBR, Metal-to-Metal (depending on application) |
Size Range | 2” to 48” (DN50 to DN1200) |
Pressure Rating | ANSI Class 150, 300, 600 (based on design and application) |
Temperature Range | -29°C to +425°C (-20°F to +800°F), depending on seat and body material |
End Connections | Wafer, Lug, Flanged (ANSI B16.5), or Custom |
Control Voltage | 24V, 110V, 220V, or 380V (AC/DC options available) |
Actuator Type | Electric Motor with Limit Switches, Position Indicators, and Feedback |
Actuator Protection | IP65/IP67 or higher (dustproof and weatherproof) |
Stem Type | Rising or Non-Rising Stainless Steel Stem |
Stem Packing | Graphite, PTFE, or Combination for enhanced sealing |
Manual Override | Handwheel or lever for manual operation during power failure |
Mounting Standard | ISO 5211 compliant for actuator mounting |
Leakage Class | Class VI (for resilient seats); Metal-to-Metal options available for high-pressure or abrasive applications |
Testing Standards | API 598, MSS-SP-81, EN 12266-1 (Shell and Seat Leakage Tests) |
Applications | Mining, Water Treatment, Chemical, Petrochemical, Pulp & Paper, Power Generation, Food & Beverage |
Weight | Varies by size, pressure rating, and material configuration |
