Cast Iron Knife Gate Valve in Ahmedabad

High-quality cast iron knife gate valves from Controtek Global are made to withstand harsh conditions. In situations where conventional valves might not be able to handle thick fluids, slurries, powders, or wastewater, these valves are perfect. They have a long service life because of their exceptional resistance to corrosion and wear due to their sturdy cast iron construction. The sharp-edged gate smoothly cuts through media, preventing clogging and guaranteeing tight shut-off, and their small size makes installation and maintenance simple. Cast iron knife gate valves from Controtek Global offer efficiency, robustness, and reliable performance in a variety of industrial settings thanks to their precise engineering and sturdy construction.

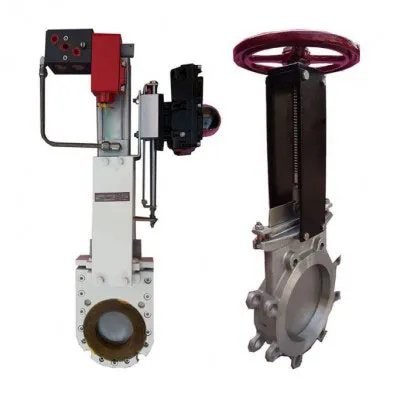

Cast Iron Knife Gate Valve

Features of Cast Iron Knife Gate Valve

  • Durable Cast Iron Body
  • Sharp Knife-Edge Gate
  • Tight Shut-Off
  • Corrosion Resistant
  • Compact Design

Applications of Cast Iron Knife Gate Valve

  • Wastewater Treatment Plants
  • Mining Industry
  • Pulp and Paper Industry
  • Chemical Processing
  • Power Plants
  • Food and Beverage Industry
  • Cement and Bulk Material Handling
  • Marine and Dredging
Cast Iron Knife Gate Valve - Technical Specification
Body Material Cast Iron (Grade FG 260 / Equivalent)
Gate Material Stainless Steel / Mild Steel (as per application)
Seat Type Metal-to-Metal / Soft Seat (EPDM, NBR, PTFE)
Size Range 50 mm to 1200 mm (2” to 48”)
Pressure Rating PN 10 (up to 10 bar)
End Connection Flanged (DIN / ANSI / IS Standards)
Operation Handwheel, Gear, Pneumatic Cylinder, or Electric Actuator
Temperature Range -10°C to +200°C (depending on seat material)
Design Standard MSS-SP-81 / IS 14846 / Equivalent
Testing Standard API 598 / ISO 5208 (Leakage & Pressure Testing)
Face-to-Face As per MSS-SP-81 / Manufacturer’s Standard
Coating Epoxy Coated for Corrosion Resistance
Optional Features Rising/Non-Rising Stem, Pneumatic/Electric Actuator, Position Indicator

Frequently Asked Questions

1. What is a Cast Iron Knife Gate Valve? + A Cast Iron Knife Gate Valve is an industrial valve designed to control or isolate the flow of liquids, slurries, powders, and other media. It features a cast iron body with a sharp-edged gate that moves vertically to provide effective shut-off and flow isolation.
2. Where are Cast Iron Knife Gate Valves commonly used? + Cast Iron Knife Gate Valves are commonly used in wastewater treatment, mining, pulp and paper, chemical processing, power generation, cement, and general industrial applications where reliable flow isolation is required.
3. What are the main advantages of a Cast Iron Knife Gate Valve? + Cast Iron Knife Gate Valves offer robust construction, effective flow isolation, simple operation, compact design, and economical performance. Their knife-edge gate can help cut through certain solids and slurries while providing dependable shut-off.
4. Can a Cast Iron Knife Gate Valve handle slurry and solid-containing media? + Yes, Cast Iron Knife Gate Valves can be used for many slurry and solid-containing media applications, depending on the valve design and material selection. The knife-edge gate helps manage challenging media, while suitable seats and components can be selected according to operating conditions.
5. How does a Cast Iron Knife Gate Valve operate? + A Cast Iron Knife Gate Valve operates by moving a knife-shaped gate vertically between the open and closed positions. Depending on the design, it can be operated manually using a handwheel or automatically using a suitable actuator.
6. What maintenance is required for a Cast Iron Knife Gate Valve? + Routine maintenance includes inspecting the gate, seats, stem, and other sealing components, removing accumulated debris, checking for leakage, and ensuring smooth opening and closing. Regular inspection helps maintain reliable performance and extend the service life of the valve.
