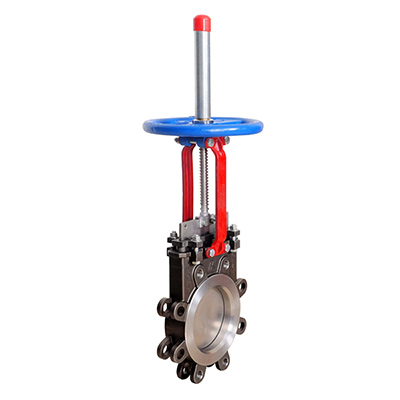

Ductile Iron Knife Gate Valve in Ahmedabad

Premium-grade ductile iron knife gate valves from Controtek Global are designed for dependability, strength, and durability. These valves, which are made of ductile iron, are more durable and have a greater capacity to handle pressure than those made of regular cast iron. They are made specifically to easily handle difficult media like slurries, wastewater, pulp, powders, and abrasive materials. A tight shut-off is consistently provided by the sharp-edged gate, which guarantees a smooth cutting action through solid particles and thick fluids. The ductile iron knife gate valves from Controtek Global are a reliable option for a variety of industries, including chemical processing, pulp and paper, wastewater treatment, and mining, due to their exceptional corrosion resistance, long service life, and low maintenance needs.

Cast Iron Knife Gate Valve

Features of Ductile Iron Knife Gate Valve

  • In comparison to regular cast iron, ductile iron bodies are more durable.
  • Sharp Edge Gate Knife
  • Tight Shut-Off
  • Corrosion Resistant
  • Compact Design

Applications of Ductile Iron Knife Gate Valves

  • Transportation of Slurry in Mineral Processing
  • Thermal Power Plant Ash Handling
  • Processing of Molasses and Sugar
  • Sewage Sludge and Biogas Plants
  • Power Plants
Ductile Iron Knife Gate Valve - Technical Specification
Body Material Ductile Iron (Grade GGG40 / Equivalent)
Gate Material Stainless Steel (SS304 / SS316)
Seat Type Metal-to-Metal / Soft Seat (EPDM, NBR, PTFE available)
Size Range 50 mm to 1200 mm (2” to 48”)
Pressure Rating PN 10 / PN 16 (up to 16 bar depending on size)
End Connection Flanged (DIN / ANSI / IS Standards)
Operation Handwheel, Gear, Pneumatic Cylinder, or Electric Actuator
Temperature Range -10°C to +200°C (depending on seat material)
Design Standard MSS-SP-81 / IS 14846 / Equivalent
Testing Standard API 598 / ISO 5208 (Leakage & Pressure Testing)
Face-to-Face As per MSS-SP-81 / Manufacturer’s Standard
Coating Epoxy Coated for Corrosion & Abrasion Resistance
Optional Features Rising/Non-Rising Stem, Double Acting Pneumatic Actuator, Position Indicator

Frequently Asked Questions

1. What is a Ductile Iron Knife Gate Valve? + A Ductile Iron Knife Gate Valve is an industrial valve designed to control or isolate the flow of liquids, slurries, powders, and other media. It features a ductile iron body and a sharp-edged gate that moves through the media to provide reliable flow isolation.
2. Where are Ductile Iron Knife Gate Valves commonly used? + Ductile Iron Knife Gate Valves are commonly used in water and wastewater treatment, mining, pulp and paper, power generation, chemical processing, cement, and slurry handling systems where dependable isolation is required.
3. What are the main advantages of Ductile Iron Knife Gate Valves? + These valves offer good mechanical strength, durability, corrosion resistance, compact construction, reliable shut-off, and cost-effective performance. Ductile iron also provides better strength and impact resistance than conventional cast iron for many industrial applications.
4. Can Ductile Iron Knife Gate Valves handle slurry and abrasive media? + Yes, Ductile Iron Knife Gate Valves can be used for many slurry and abrasive media applications when the appropriate gate, seat, lining, and sealing materials are selected. Application conditions should be considered to ensure suitable wear resistance.
5. How does a Ductile Iron Knife Gate Valve operate? + The valve operates by moving a knife-shaped gate vertically between the open and closed positions. When the gate is raised, the flow passage is open. When lowered, the gate closes the passage and isolates the pipeline.
6. What maintenance is required for a Ductile Iron Knife Gate Valve? + Regular maintenance includes inspecting the knife gate, stem, seats, packing, and sealing components for wear, corrosion, or leakage. Cleaning accumulated deposits and checking smooth opening and closing operation helps maintain reliable performance and extend service life.
